Complete rebuild of 1990's MTB to 2016 XT spec 1x10

Hi Shedobits

Sounds bad. Being new to cycling I don't think I will be pushing the brakes too hard. However if once up and running they don't seem brilliant I will replace with a Shimano dual pivot version.

Thanks for the positive comments

Time for an update.

I have been busy during lunchtimes and after work spraying the fork and frame with the help of a friend at work. First we applied two coats of colour over the primed parts and allowed this to dry at 30 degrees.

Photos below...


Attachments

  • IMG_3219.jpg
    54.7 KB · Views: 561
  • IMG_3220.jpg
    32.4 KB · Views: 561
  • IMG_3221.jpg
    42.1 KB · Views: 561
  • IMG_3222.jpg
    38.8 KB · Views: 561

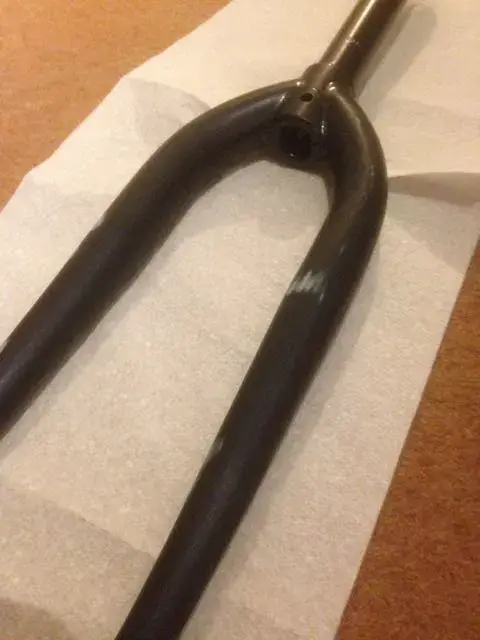

Next was to gently rub down all the parts to remove any remaining high spots. Once this was carried out two more coats of colour were applied. This was allowed to dry ay 30 degrees for approximately six hours.

See photos...


Attachments

  • IMG_3292.jpg
    32.2 KB · Views: 553
  • IMG_3293.jpg
    35.9 KB · Views: 553
  • IMG_3294.jpg
    35.6 KB · Views: 553
  • IMG_3295.jpg
    50.5 KB · Views: 553
  • IMG_3296.jpg
    45.9 KB · Views: 553
  • IMG_3297.jpg
    46.2 KB · Views: 553
Next came the really fun bit, the lacquer.

We applied three coats of lacquer with thirty minute intervals to generate a really deep shine. At the end of the today it was looking really sweet. Just left to dry now at 30 degrees over the weekend to ensure everything has fully hardened.

Assuming everything sets and no one touches or drops it in-between, next week I can start the rebuild and develop the new bike as planned.

See photos....


Attachments

  • IMG_3334.jpg
    60.3 KB · Views: 546
  • IMG_3374.jpg
    26.5 KB · Views: 546
  • IMG_3375.jpg
    32.5 KB · Views: 546
  • IMG_3376.jpg
    26.9 KB · Views: 546
  • IMG_3377.jpg
    36.9 KB · Views: 546
  • IMG_3378.jpg
    28.9 KB · Views: 546
Re:

NewRider - When you say "dual pivot", I'm guessing that you mean a normal cantilever U-brake style of set-up ... yes?

https://www.google.nl/search?q=u+brake+ ... QNaZdFY7hM:

If you want to mount different brakes on the bike I would suggest changing to BMX style U brakes. Road style dual pivot brakes don't have enough tire clearance for MTB tyres. Use the mounting plate as in above link, or create one, you seem to be highly creative. That wil give you upgraded brake performance with good tyre clearance.

Paint looks really nice good job!

Great thread so far I'm liking the progress, however don't boast about the paint to loudly or we'll all be knocking on your door frames in hand :LOL:

Hi bartsince1975

Good points well made. I haven't really thought to much on the brakes as my plan has been rebuild the original single pivot and update them as much as possible. I had not appreciated the tyre width affecting the dual pivot design.

I like the mounting plate idea for dual pivot, very clever. If the original brakes prove not to effective I will look at the conversion.

Many thanks
