Doug doesn't appear to be one who's swayed by oxygen free copper and imagined diode effects does he? :LOL:

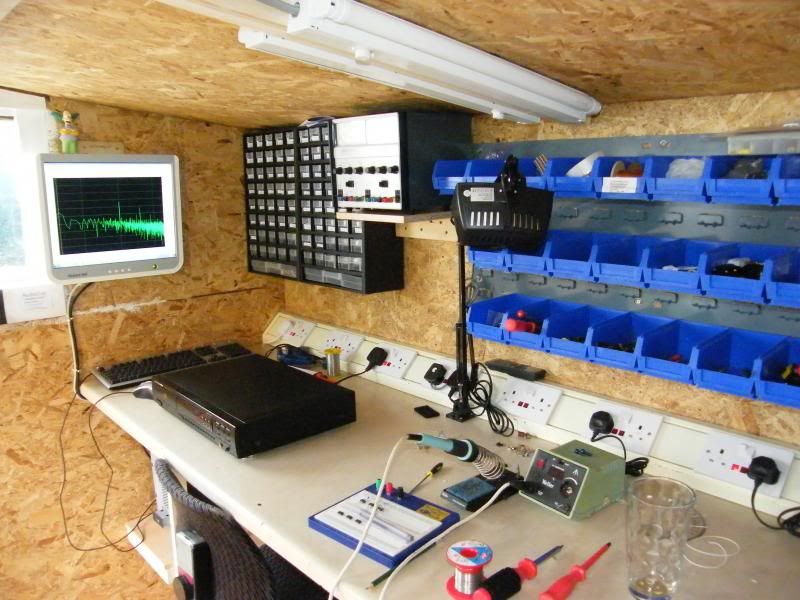

Workshop's looking far too tidy...


Tone Control under way



Just waiting for CPC to get their fingers out and send me the pots and capacitors for break frequencies, oh, and come up with a power supply design.

Initial measurements on the prototype tone control if anyone's interested. There is a small amount of HF instability (expected with this type of tone control) I can cure that but I don't have any low pF capacitors at home. Will have to grab a few in work tomorrow. Might shift the LF a bit lower, and the HF a bit higher, but will listen first. The HF roll-off is a 'feature' of the crappy soundcard in my measurement PC, and NOT the tone control circuit!


Flat

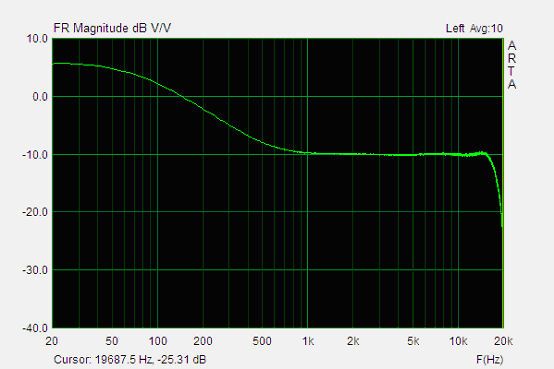

LF Max

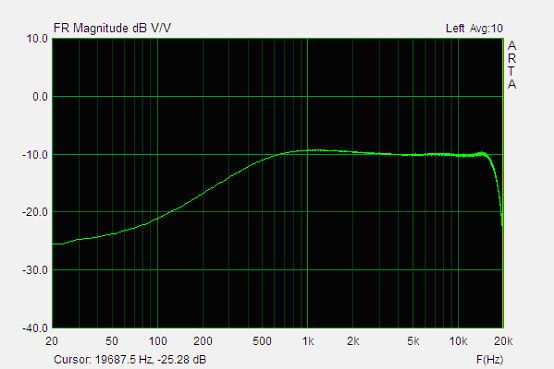

LF Min


HF Max

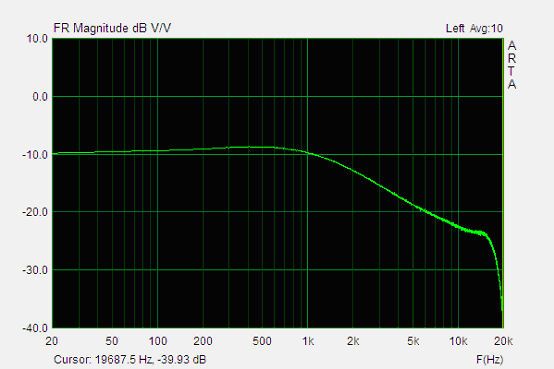

HF Min

More difficult to make it battery powered. This needs split power rails, but fret ye not, I have a fairly radical plan :)

Brought home some low value caps to nail the HF stability issue so will do that this weekend. Also thinking about using fet input op-amps so I can dump the dc blocking caps (lower input offset voltage traded off against probably unnecessarily low noise)

Watch this space - It's gonna be good!

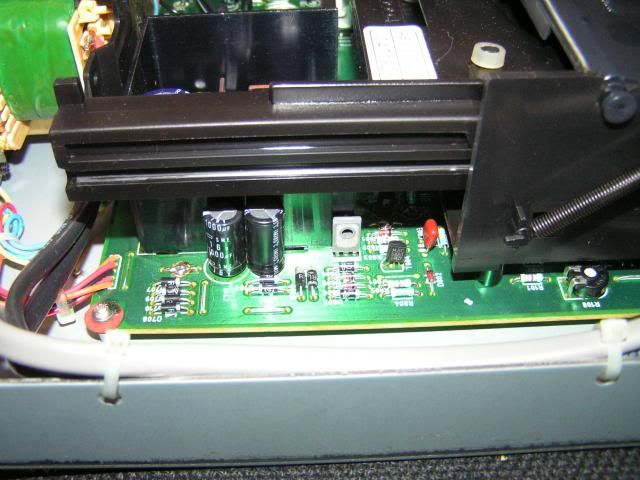

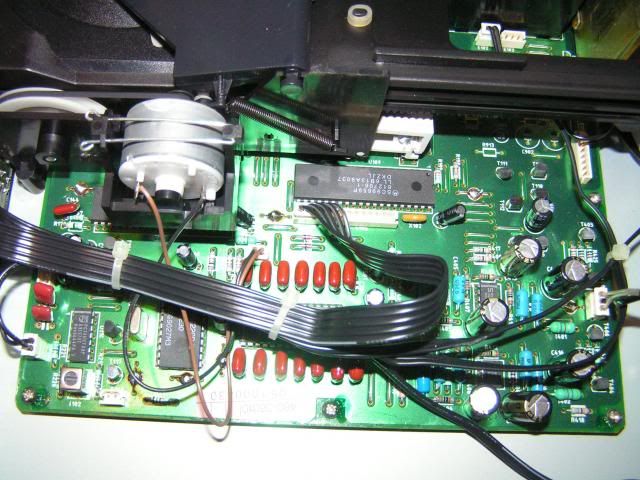

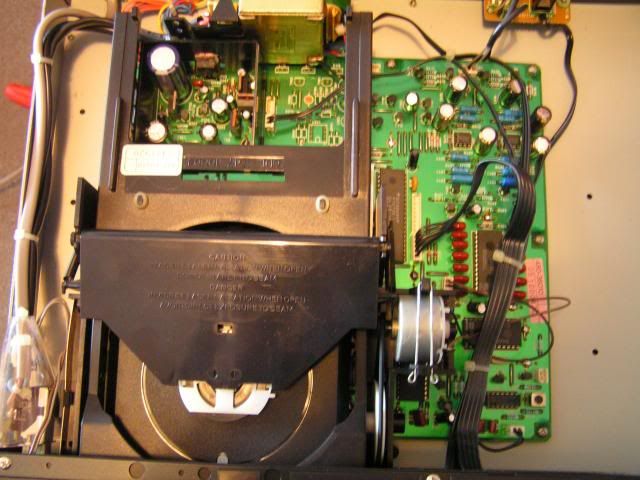

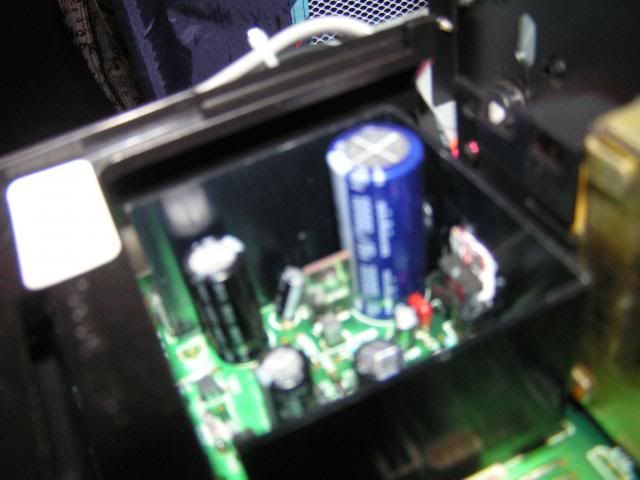

here my rotel rcd 855 i think the blue thing out of focus is the clock ??? it says mirophonic all over it....

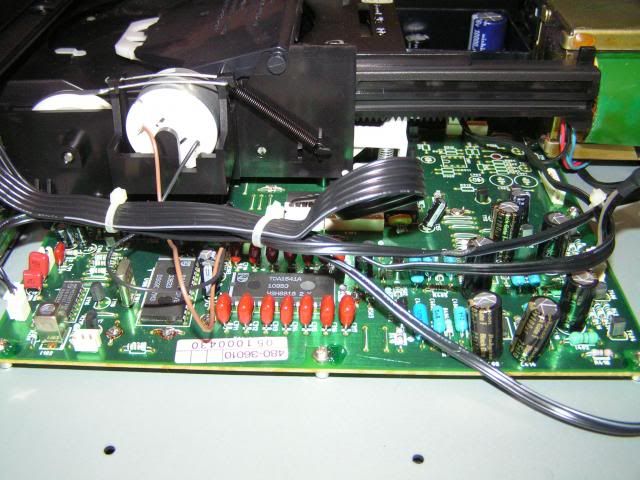

The clock (the one you're interested in) is near the DAC (the TDA1541 - which is a very well respected DAC by the way)

The silver can south of the DAC on the second to last pic is the clock crystal.
