Porsche FS Spec

[LeeW]

Anyone have an idea what crankset was fitted to the late 90's Porsche FS MTB. Was it a carbon crank?
TIA



[joglo]

hi,
initially the Porsche FS had this iconic D.A.R.T cranks from Herman Blechtechnik, the company later producing the Hot Chili bikes.

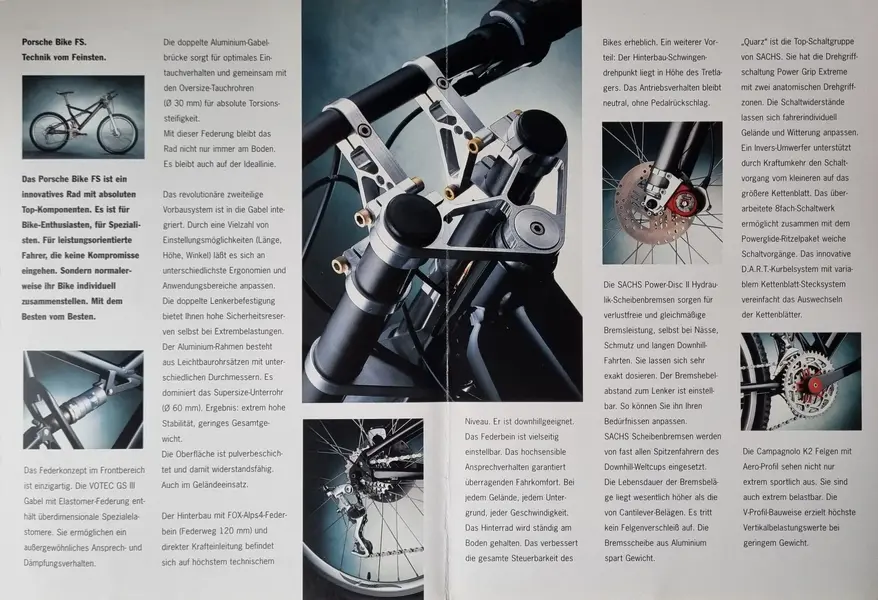

1995 Porsche bikes brochure

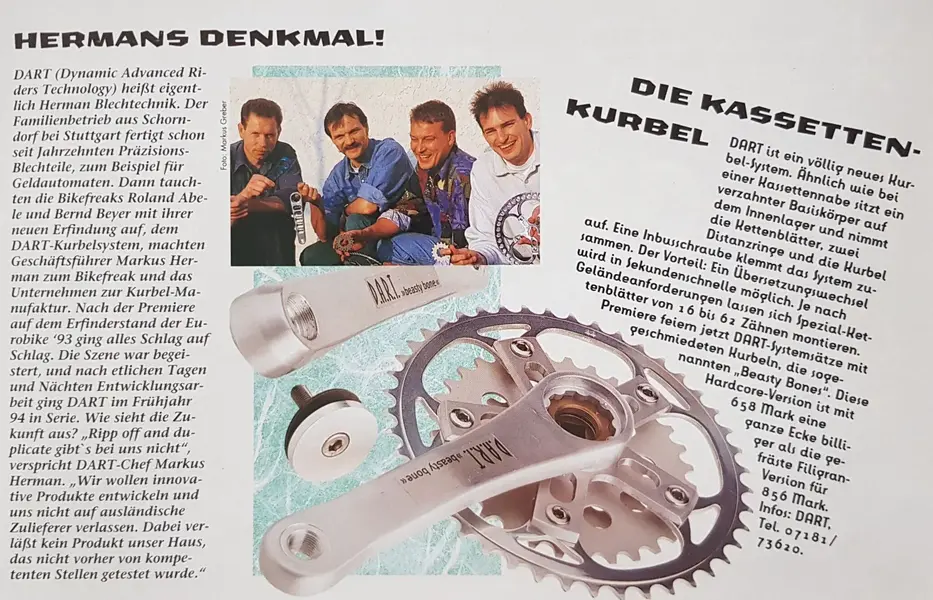

Bike mag article introducing D.A.R.T

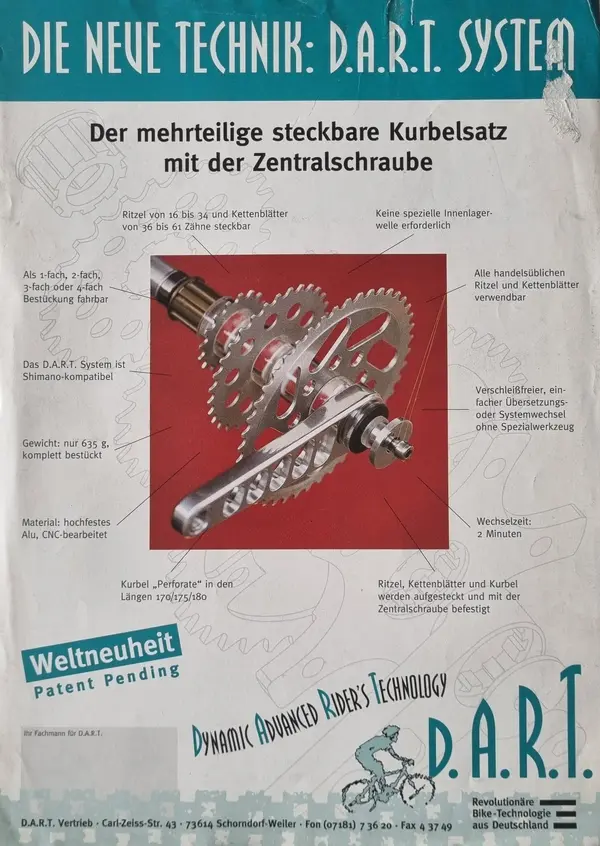

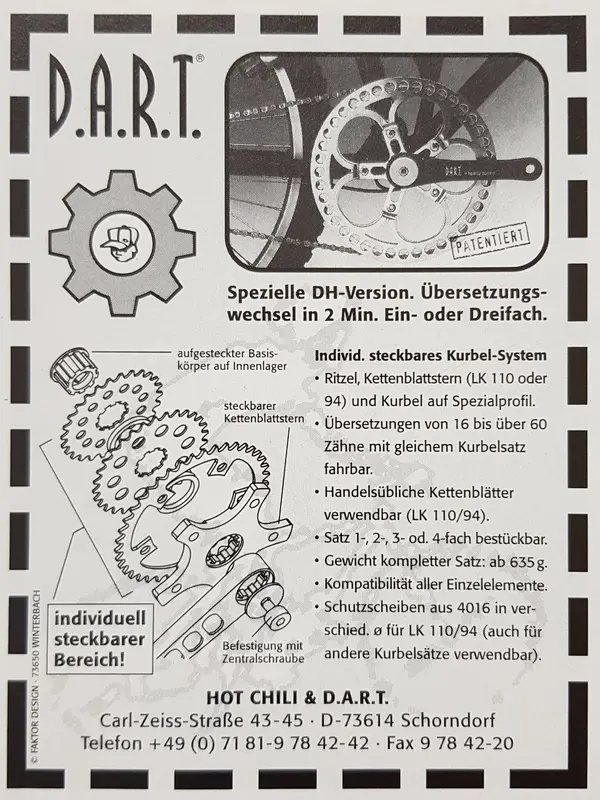

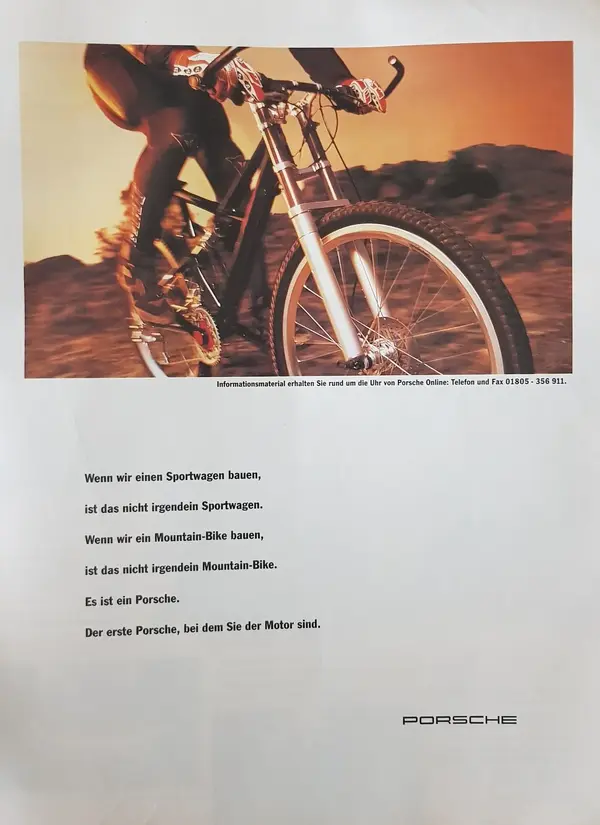

Porsche ad from 1996


Later Porsche FS had regular XT cranks,
the Porsche FS Evolution, the one with the Spengle wheels, had indeed a nice carbon crank called in the brochure "Profile AlpinePro" cranks

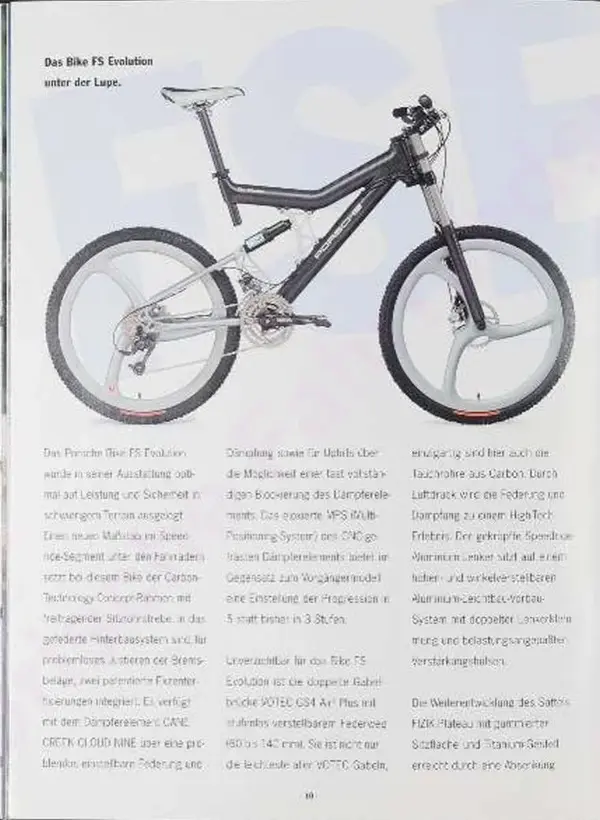

2010 brochures (i found somewhere in the internet, there is no better resolution, sorry)

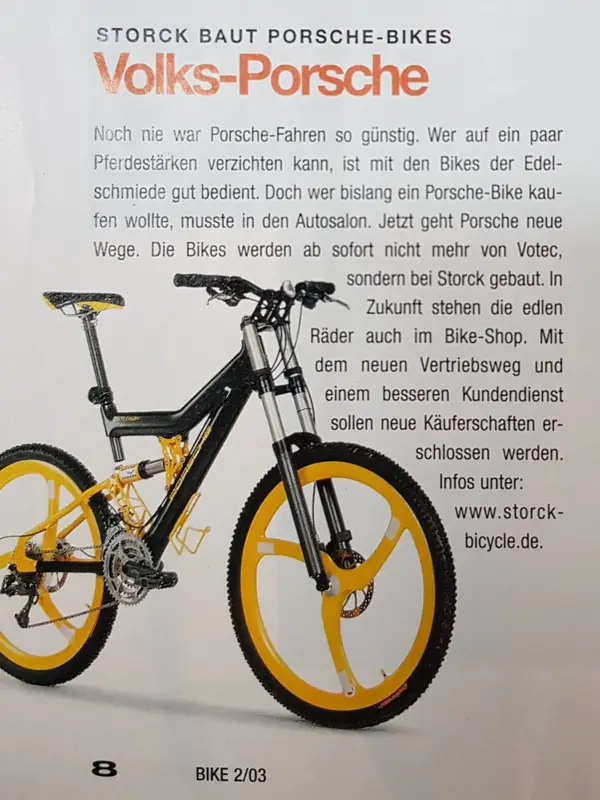

As the evolution was produced by Storck, I'm pretty sure that the carbon cranks could be from Stork too.

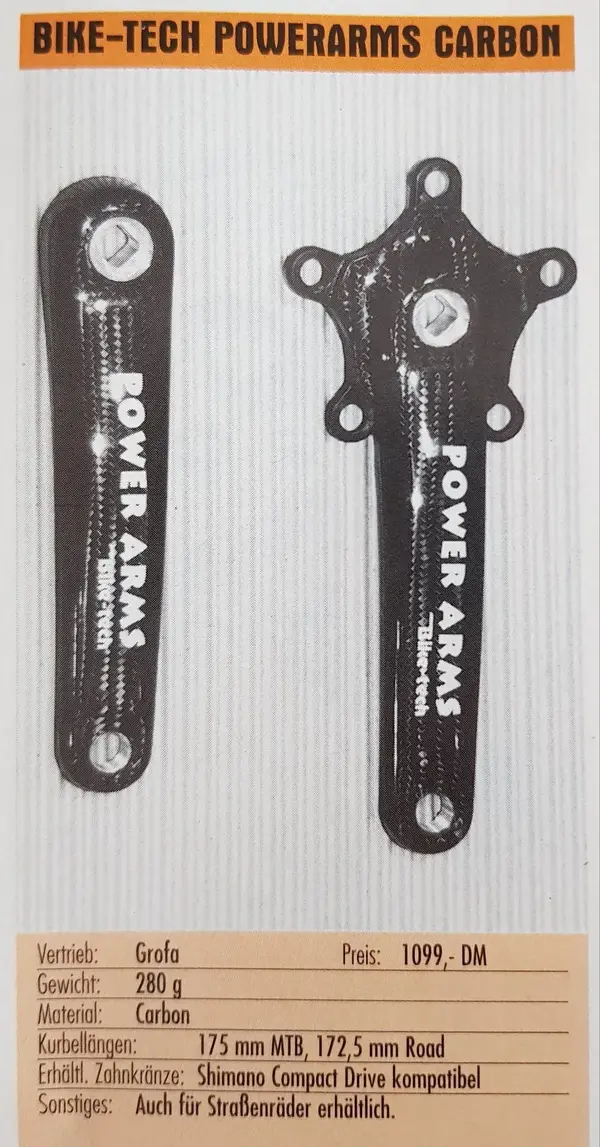

Their Storck or Bike-Tech powerarms carbon cranks had been pretty good and popular



[LeeW]

hi,
initially the Porsche FS had this iconic D.A.R.T cranks from Herman Blechtechnik, the company later producing the Hot Chili bikes.
1995 Porsche bikes brochure
View attachment 799984

Bike mag article introducing D.A.R.T
View attachment 799997

Porsche ad from 1996
View attachment 800001

Later Porsche FS had regular XT cranks,
the Porsche FS Evolution, the one with the Spengle wheels, had indeed a nice carbon crank called in the brochure "Profile AlpinePro" cranks
2010 brochures (i found somewhere in the internet, there is no better resolution, sorry)
View attachment 799996


As the evolution was produced by Storck, I'm pretty sure that the carbon cranks could be from Stork too.

Their Storck or Bike-Tech powerarms carbon cranks had been pretty good and popular
View attachment 800000

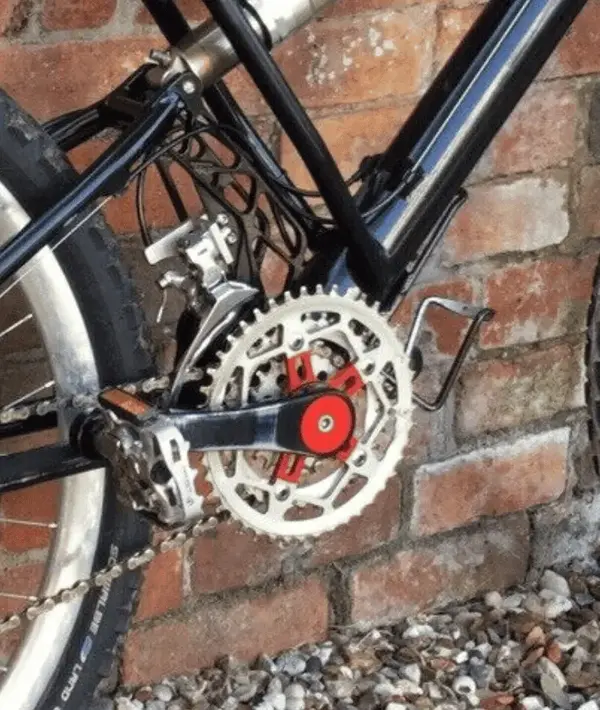

That's great research fella, thank you. I'm not sure how many iterations or years the FS was built or production numbers even. I understand Votec were the builders for Porsche. Would this be an XT crankset but with a black finish, which as we can see, isn't wearing very well. This is what is fitted to the bike I am looking at.



[joglo]

That's great research fella, thank you. I'm not sure how many iterations or years the FS was built or production numbers even. I understand Votec were the builders for Porsche. Would this be an XT crankset but with a black finish, which as we can see, isn't wearing very well. This is what is fitted to the bike I am looking at.

ah, this one

is obviously the DART crank.



Just most common are the later models which had also CNC holes in the arm and where every chainring was already back in time with direct mount



[joglo]

I understand Votec were the builders for Porsche.

yes Votec was the supplier for Porsche, just later models are from Storck



[Retro Spud]

Steiner designed the bike

Still going and super helpful - I’ve got the main man’s email address somewhere but f you need it - he was super helpful and sourced some illusive parts for mine from old stock



[LeeW]

Steiner designed the bike

Still going and super helpful - I’ve got the main man’s email address somewhere but f you need it - he was super helpful and sourced some illusive parts for mine from old stock

Wow, that's a treat. I do find people within the bike world super helpful so am not surprised that he would try and source things for an enthusiast



[AaronRN1]

Interested to see if anyone is still in this thread. I just bought a nice old FS like the one in the pic and wanted to repair a couple things.



[Retro Spud]

Ooo nice - not sure on the saddle but look original right down to the Trans X seat clamp

Haven’t seen many FS appear in theres pages



[Retro Spud]

What are you looking to repair - the elastomers for the forks are still available but you will need twice the number that go in a Rock Shox etc
