Novice project Specialized Rockhopper

Jimmy2021

Dirt Disciple
Hi, this is only the second bike I build, nothing special and most parts have been kindly donated by my good friend @ibbz or taken from other bikes in past years.
I am no expert in bikes but I can fix almost everything and restore things that most people will throw away.

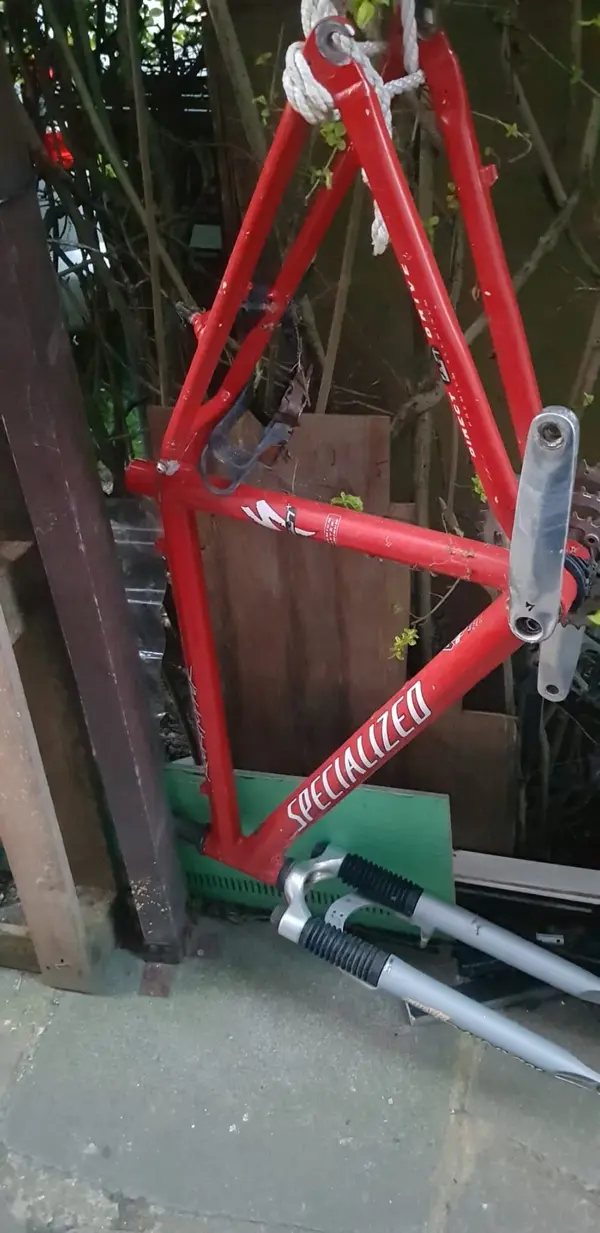

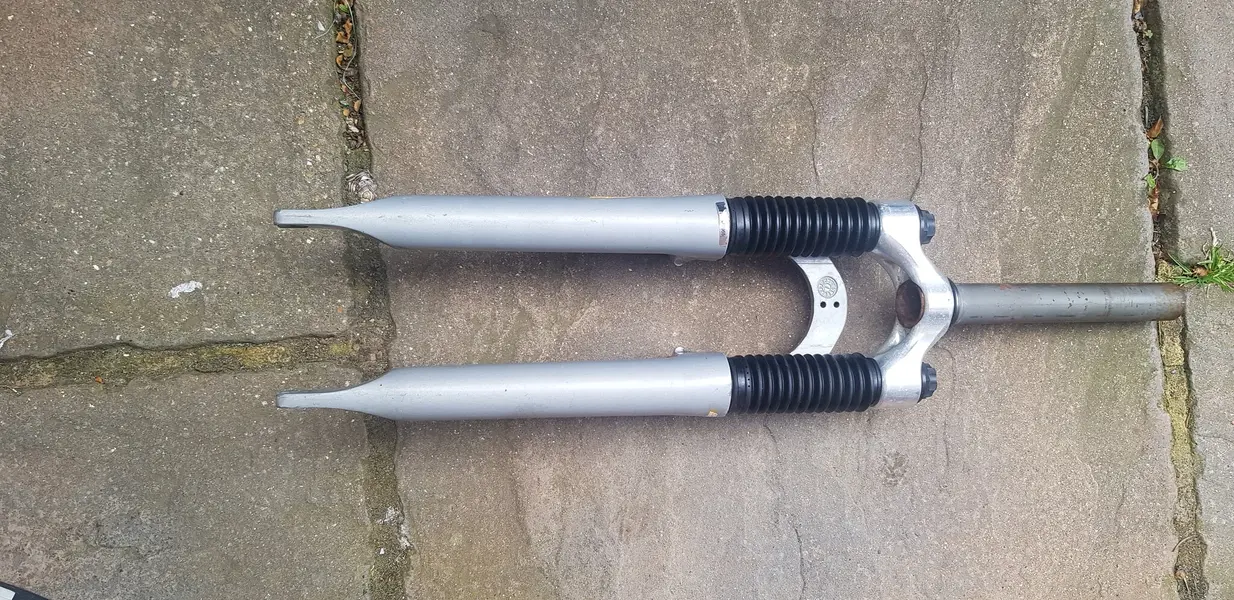

So, here is a frame that a guy gave away on gumtree along with a Manitou Spyder that I took from another bike.

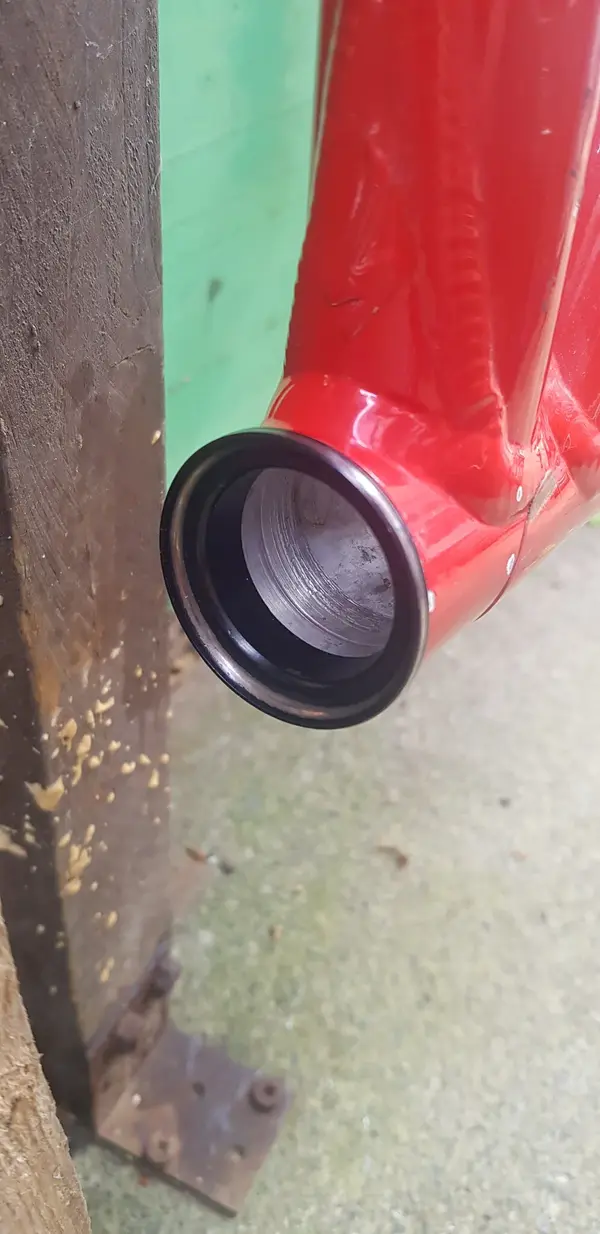

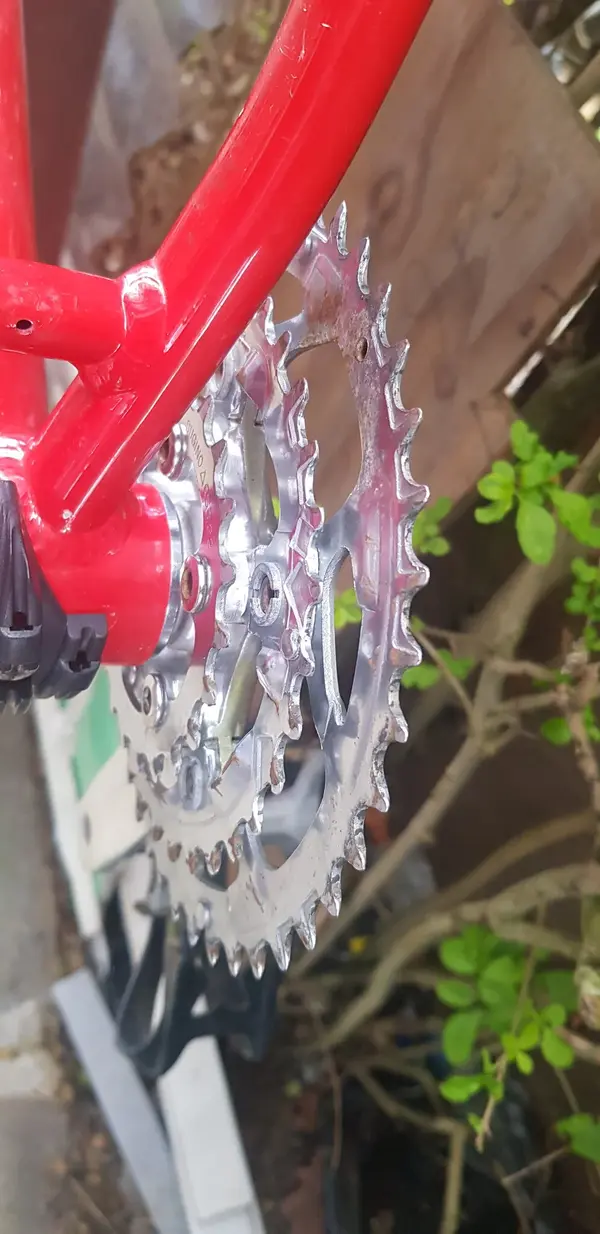

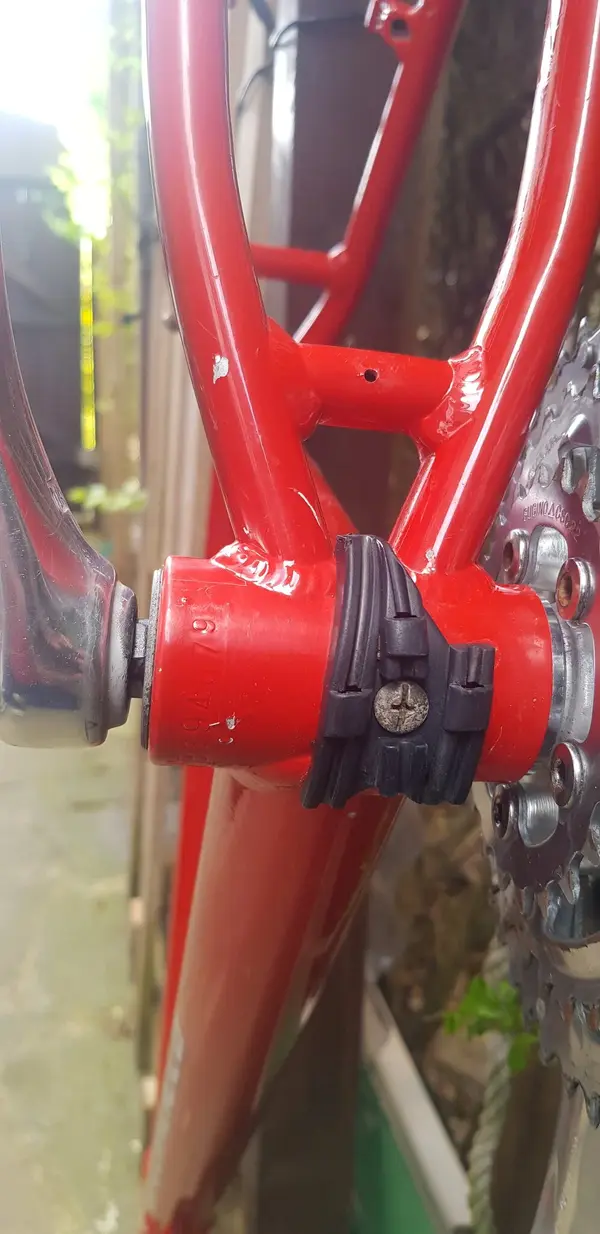

I cleaned the frame and fork



20240616_180818.jpg 20240616_180850.jpg 20240616_181004.jpg

First problem today: I had half hour to spare so I thought to fit the brakes.
Front ones needed a washer because the bolts I had were a touch too long.

20240625_203849.jpg 20240625_203838.jpg

The rear ones were a bummer.
Some bright sparks had filed the brake brakets and were too short, so tightening the bolts would stop the brakes from moving freely.
Once again, my unlimited collection of stainless steel hardware came to the rescue in the form of tiny washers of (luckily) the correct size.
Threadlock added to all fixing bolts.
One and half hour and some swearing later, I finally got a result.

20240625_203824.jpg 20240625_203832.jpg

As you can see I also bolted the derailleur, that was a one minute job luckily.

Last edited:
Now, this is the part where I need advice.
As you can see I temporarily fitted those campagnolo wheels

But I also have these mavic


Please don't look at the tyres, I will get better ones, but which wheels would you fit?
Both sets are in good condition although they need a good clean, and are perfectly straight.
If you've read all of this, well done 😂
I hope to get some further advice and suggestions.

Thanks

Are all the bolts the same length on the brakes? Check you got them the right way around. I never realised until very recently that the rear and fronts take different lengths (giggidy).
Makes sense I suppose as rotation pushes the rear brakes inwards and the fronts away from the forks.

Are all the bolts the same length on the brakes? Check you got them the right way around. I never realised until very recently that the rear and fronts take different lengths (giggidy).
Makes sense I suppose as rotation pushes the rear brakes inwards and the fronts away from the forks.
All same length.
They didn't come with the brakes, but from my collection of hardware bits and bobs 😂
Is there a different solution for the rear brakes where the brackets have been filed short?
Or what I've done is the only way?
