FSA Bottom Bracket - are they all different - help please!

[slomo]

I'm revisiting an old problem.....
I have some FSA SLK Road Carbon Triple cranks with a self extracting bolt - going into a 68mm shell.
There appears (to me at least) to be a bewildering array of MegaExo bottom brackets.
Which is why i haven't fitted the triple for years - just easier to stick with a (SRAM) compact double.
But a planned trip justifies (probably requires) the use of a triple.
Each 'chart', image etc i look at seems to specify a different BB.
Does anyone know if each FSA crank has a specific BB.....or is there at least some cross compatibility?
Some charts specify unique models (eg FSA BB-8681) and some simply state for example - 8000 'series'.
I've asked FSA.....
Any help greatly appreciated.



[synchronicity]

One of my favourite cranks that.

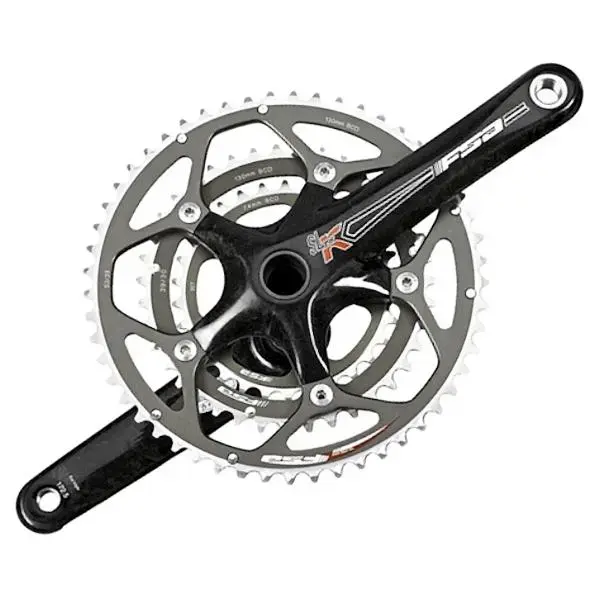

Are these the cranks you wish to install?

Some of those megaexo bbs are different yeah, looks like a different spindle diameter on some of them.

As an aside, BB standards were only just getting started back then!



[synchronicity]

I've had a bit of a look for you.
I have a hunch that BB-6000, BB-7000, BB-8000 might work.
They had different shells made of different materials to distinguish different price points.

Wait for others to confirm what they know before ordering anything though.



[synchronicity]

Is it a 24mm spindle diameter?



[slomo]

Thanks ever so much for the reply.
Yes - that's the exact little buggers!
24mm spindle, self extracting NDS.
I used them until the BB got crunchy, then replaced them with a compact GXP double.
I recall i got frustrated because i understand that there are different BB standards, but FSA take it to a different level - having standards within standards.
At least there is cross compatibility with SRAM/Shimano.
It's been a while, but i seem to recall several bike shops scratching their heads and pointing out that 'well, they all LOOK the same'.....
But i need the triple soon and i'm working on the asumption that a new bottom bracket is cheaper than new cranks.
And to be fair to FSA, they were the only carbon triple i could find.
Anyway.....thanks again - your suggestion that different materials indicate different price points makes sense.
The original BB was this very weird brown/ginger/copper coloured thing - one of the stumbling blocks was i wanted a black or silver one.
I've never seen a brown/ginger/copper coloured frame (that the BB would match), but that's a different story.



[synchronicity]

I too have those weird copper coloured BB cups. I too would have preferred black. I think I gave up looking (or didn't even try, one of the two).

Did you order a BB yet?



[novocaine]

I'll read the number off the BB for you this evening when I get home.
although, mines a double, sooooo.



[slomo]

Many thanks for the replies.
Yes, that colour (of the cups) is just.....weird - weird enough not to want to buy one of the damn things anyway.
No, i haven't bought a BB yet - i'm still trying to establish if there are any options (see above).
Thanks novocaine!
FSA wouldn't design a crank and or BB with no cross compatibility whatsoever?
Would they.....?



[novocaine]

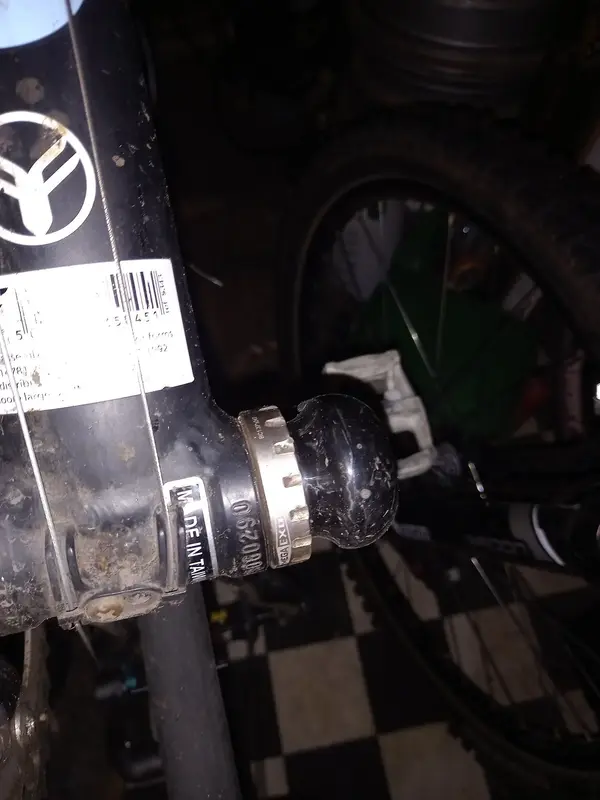

[slomo]

Awesome!
Very many thanks for the pic.
I will keep digging and see what i turn up.....
